High Temperature Wire , Silicone Insulated Wire Style UL3135 High Temperature Wire

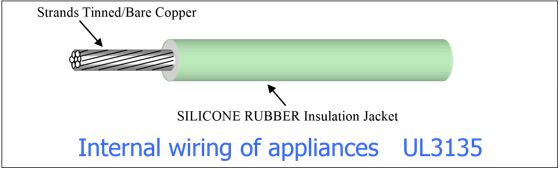

Internal wiring of electronic equipment
Request a Quote for Style UL3135 High Temperature Wire
- Conductor material of Tinned, Nickel or Silvered copper
- “*”Conductor material used only Nickel or Silvered copper per ASTM B3/33 Rated temperature 200 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| *12 | 65 | 30 | .0933 | 2.37 | .1547 | 3.93 | 1.72 | 5.64 | 27.05 | 40.16 |
| *14 | 41 | 30 | .0740 | 1.88 | .1354 | 3.44 | 2.73 | 8.96 | 18.58 | 27.58 |
| *14 | 19 | 27 | .0740 | 1.88 | .1354 | 3.44 | 2.73 | 8.96 | 18.65 | 27.67 |
| 16 | 7 | 25 | .0591 | 1.50 | .1205 | 3.06 | 4.45 | 14.6 | 13.52 | 20.09 |
| *16 | 19 | 29 | .0591 | 1.50 | .1205 | 3.06 | 4.45 | 14.6 | 13.28 | 19.70 |
| *16 | 26 | 30 | .0591 | 1.50 | .1205 | 3.06 | 4.45 | 14.6 | 13.13 | 19.47 |
| *16 | 54 | 33 | .0591 | 1.50 | .1205 | 3.06 | 4.45 | 14.6 | 13.52 | 20.08 |
| 18 | 1 | 18 | .0402 | 1.02 | .1016 | 2.58 | 6.77 | 22.2 | 9.01 | 13.37 |
| 18 | 7 | 26 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.48 | 14.07 |
| *18 | 16 | 30 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.32 | 13.85 |
| *18 | 19 | 31 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.41 | 13.97 |
| *18 | 41 | 34 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.41 | 13.97 |
| 20 | 1 | 20 | .0320 | 0.813 | .0934 | 2.37 | 10.7 | 35.2 | 6.74 | 10.00 |
| *20 | 10 | 30 | .0374 | 0.95 | .0988 | 2.51 | 11.2 | 36.7 | 7.11 | 10.56 |
| *20 | 19 | 33 | .0374 | 0.95 | .0988 | 2.51 | 11.2 | 36.7 | 7.16 | 10.63 |
| *20 | 21 | 33 | .0374 | 0.95 | .0988 | 2.51 | 11.2 | 36.7 | 7.14 | 10.59 |
| *22 | 17 | 34 | .0299 | 0.76 | .0913 | 2.32 | 18.1 | 59.4 | 5.55 | 8.22 |
| *22 | 7 | 30 | .0299 | 0.76 | .0913 | 2.32 | 18.1 | 59.4 | 5.79 | 8.59 |
| *24 | 7 | 32 | .0240 | 0.61 | .0854 | 2.17 | 28.7 | 94.2 | 4.46 | 6.63 |
| *24 | 11 | 34 | .0240 | 0.61 | .0854 | 2.17 | 28.7 | 94.2 | 4.46 | 6.64 |
| *26 | 7 | 34 | .0197 | 0.50 | .0811 | 2.06 | 45.8 | 150 | 3.73 | 5.55 |
